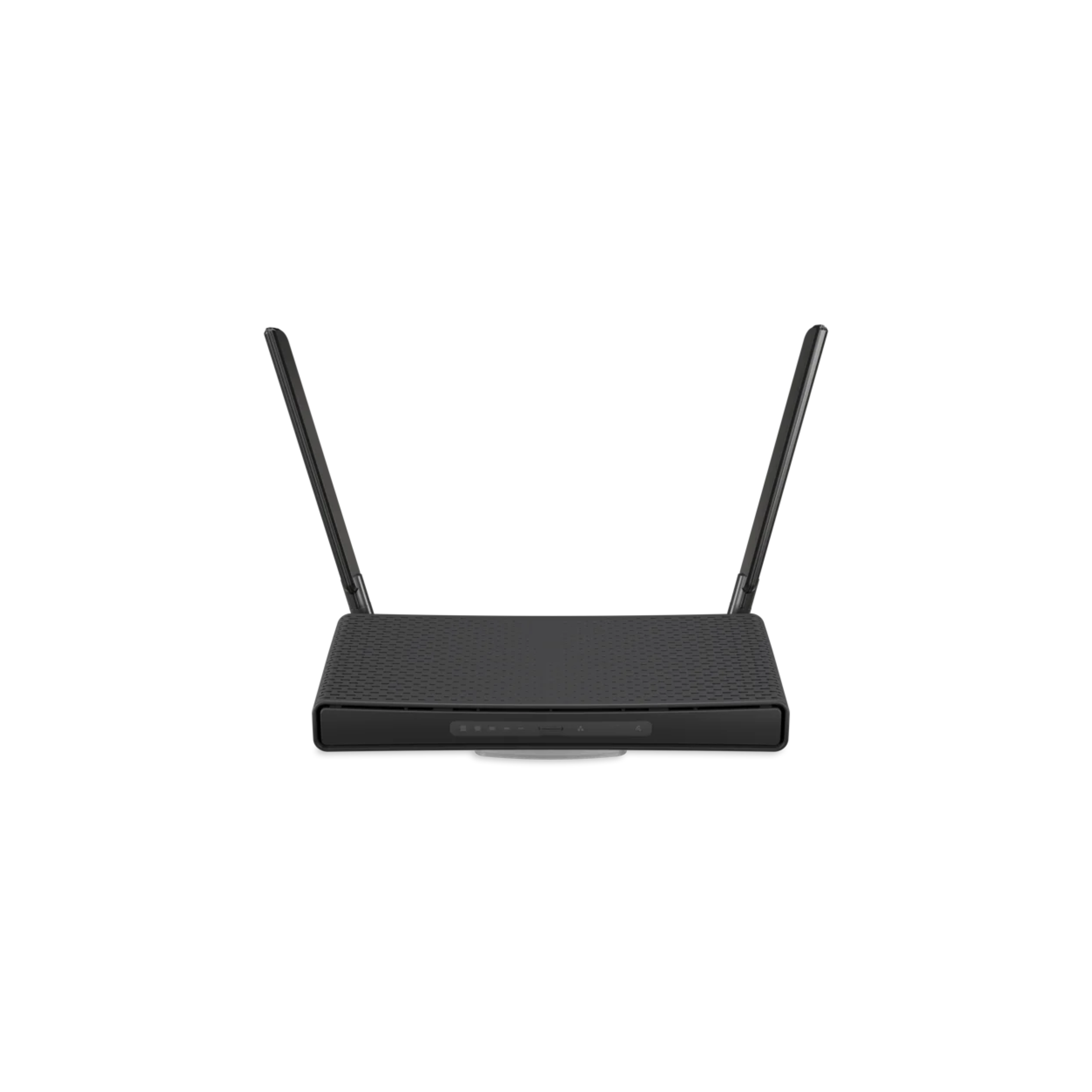

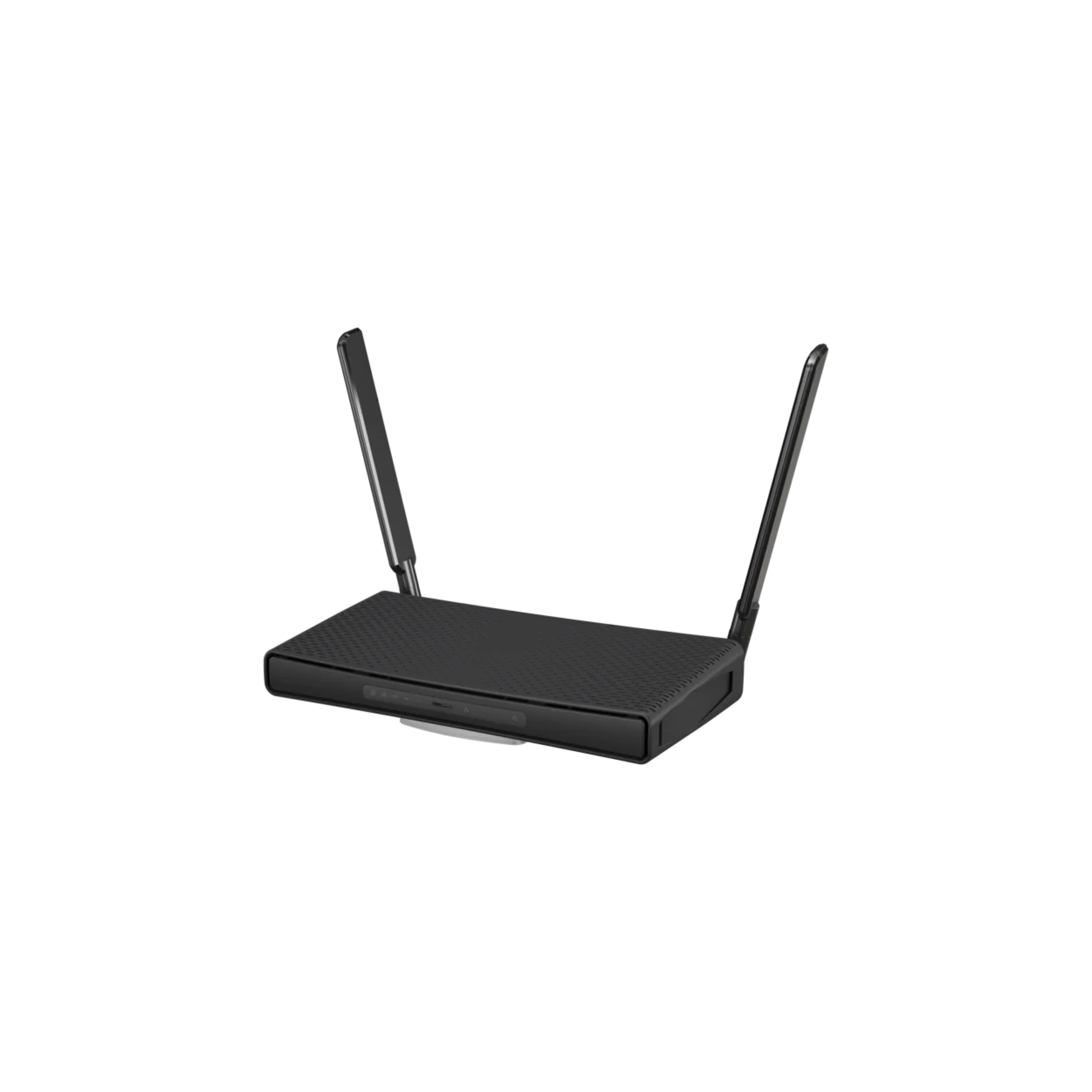

Mikrotik hAP ax3

The MikroTik hAP ax³ (Product code: C53UiG+5HPaxD2HPaxD) is a high-performance AX (Wi-Fi 6) home access point designed for demanding networking tasks, including complex firewall rules, IPsec encryption, WireGuard, and BGP.

Product Highlights

• Wireless Capabilities: Supports dual-band, dual-chain Wi-Fi 6 (802.11ax). It provides up to 574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz. The device utilizes external high-gain antennas (5.5 dBi on 5 GHz) for improved coverage.

• Processing Power: Features a quad-core 1.8 GHz ARM 64-bit CPU (IPQ-6010), supported by 1 GB of RAM and 128 MB of NAND storage, making it suitable for intensive routing and VPN tasks.

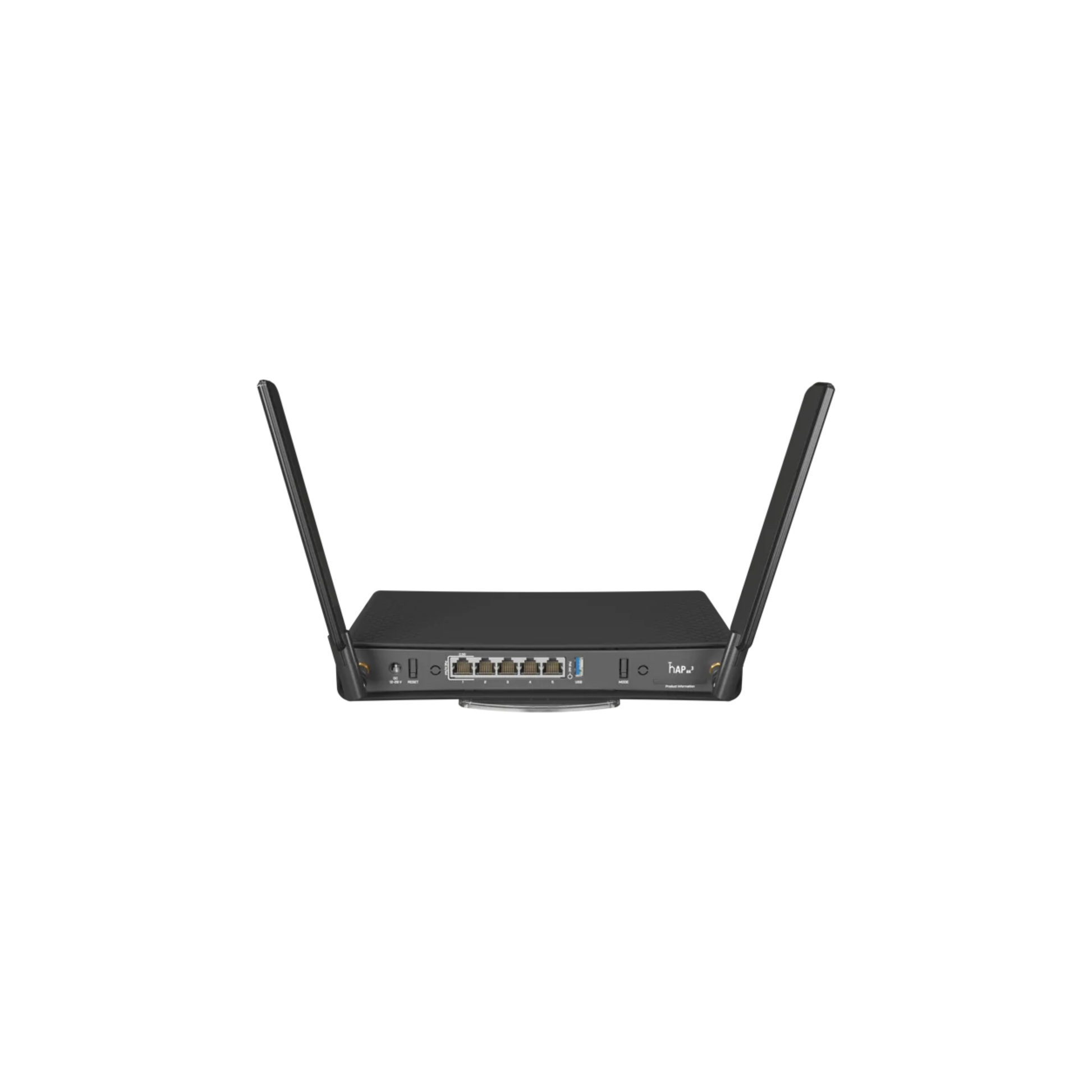

• Interfaces: Includes 4 x Gigabit Ethernet ports and one ultra-fast 2.5 Gigabit Ethernet port. It also features a high-speed USB 3.0 port for storage or an external LTE/5G modem.

• Power & PoE: Offers multiple power options (DC jack and PoE-in). It supports Passive PoE-out on the first Ethernet port (Ether1), capable of providing up to 0.625 A to connected devices.

• Operating System: Runs RouterOS v7, providing advanced routing and management features without subscription paywalls.

Quick Specifications Summary
